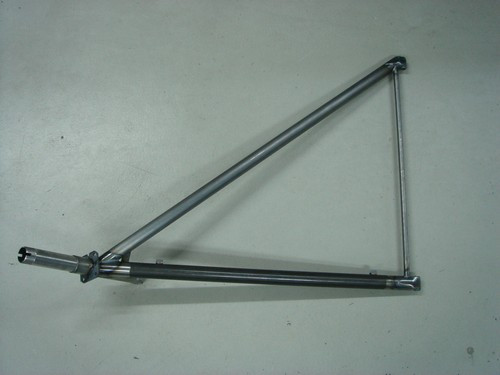

Landing Gear | J10033-5 and J10033-6

The J10033-5 and J10033-6 landing gear legs are considered to be Heavy Duty J3 or Standard Duty PA18 gear with the double tube J12965 1-1/4" axels.

These gear legs are for Experimental J-3 thru PA-18 aircraft only.

The front tube is 1-3/8" x .058 and the rear tube is 1-1/4" x .058.

These gear legs are made exactly like the originals with the correct J30361 upper attach fittings, lower axel gussets, and brake line retainer tabs.

The only change that has been made is the upper fabric channel has been replaced with a 1/2" x .035 tube for added strength.

 NOT FAA/PMA APPROVED.
